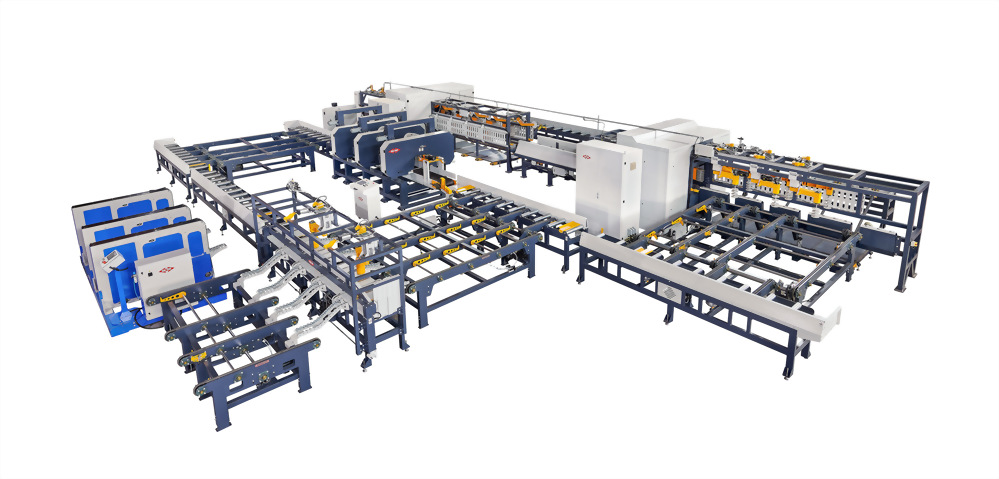

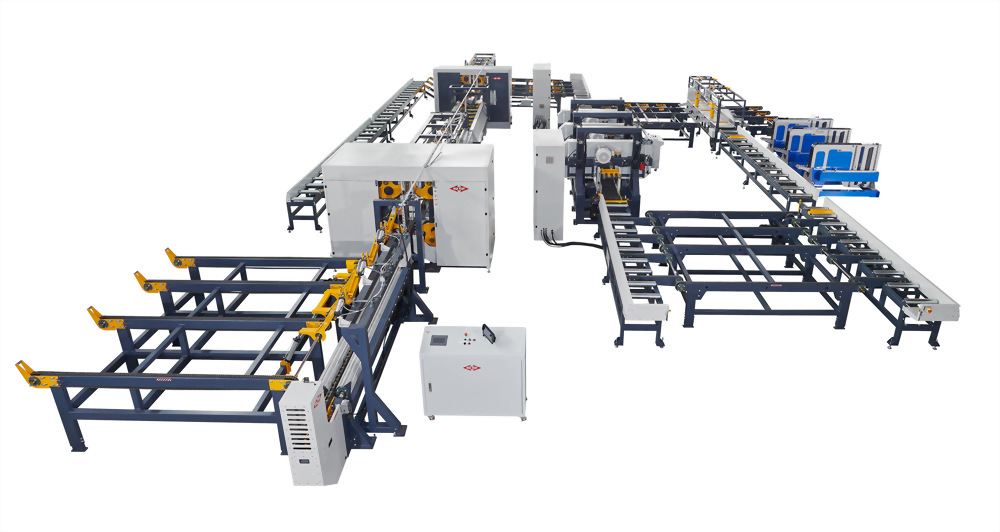

Automated Solid Wood Production Line
Model :
HP-HL
Φ: 0.14M~0.5M, L: 2M~3.6M
Description
This automated production line is capable of producing dimensioned lumber and performing automatic stacking.
It is designed to process logs with diameters ranging from 0.14 meters to 0.5 meters and lengths between 2 meters and 3.6 meters.
It is designed to process logs with diameters ranging from 0.14 meters to 0.5 meters and lengths between 2 meters and 3.6 meters.
Specifications
| Component | Specification | Function |
|---|---|---|
| A. Log Sorting System | - | Organizes logs in sequence before entering the log flipping system. |
| B. Log Positioning System | Equipped with a camera system for live positioning via control panel. | Rotates logs to a neutral position to maximize lumber yield. Provides precise alignment. |
| C. Feeding System A | - | Feeds logs steadily into the HP-88(A) double vertical band saw. |
|
D. HP-88(A) – Double Vertical Band Saw (First Cutting Stage) |
Saw Wheel Size: ψ28" × 2" Blade Width: 2" (54 mm) Saw Wheel Motors: 20 HP × 2 |
Cuts both sides of the log to remove slabs. |
