SPECIFICATIONS

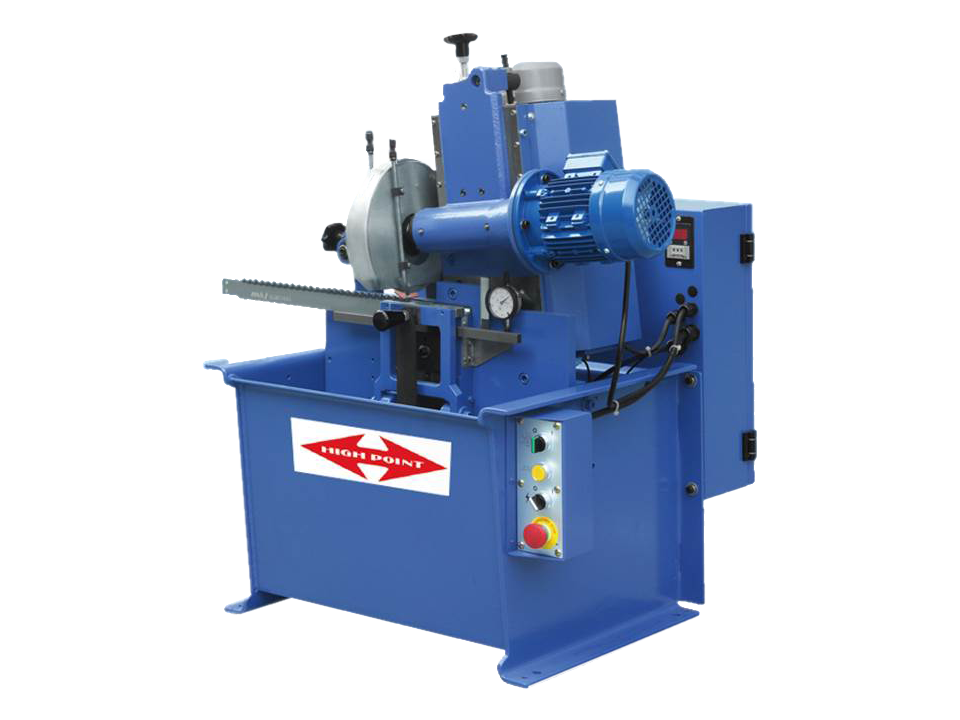

MODEL: BS-168A

Outer Diameter

200mm

Thickness

8mm

Inner Diameter

20mm

2rd Outer diameter

3mm

3nd Outer diameter

1.5mm

Motor

1/2 HP, 1/4 HP, 1/8 HP

Blade thickness

<2 mm

Blade width

25-100 mm

Blade length

Unlimited

Tooth pitch

12-32 mm

Tooth height

≤ 8 mm

Front rake angle

5-15 Degrees

Working speed

6 Sec./tooth

GRINDING WHEEL (by choice of one)

YWG20SDB325 SDC for carbide tipped

YWG20CBN325S CBN for satellite
