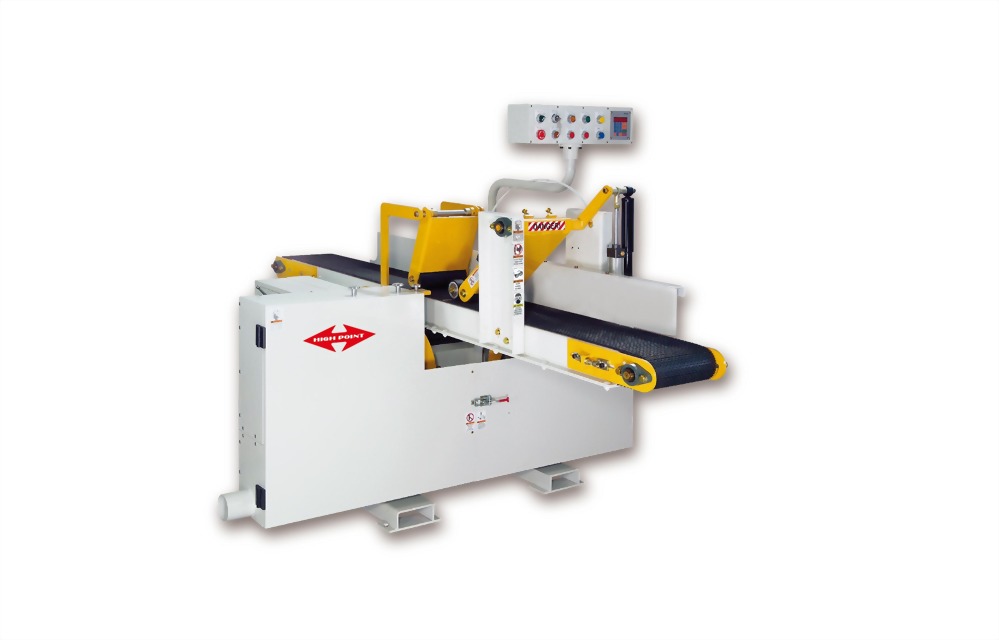

12" Single Head Horizontal Band Resaw
• Motor powered set works for accurate saw wheel elevation.
• Digital position controller permits accurate saw wheel height positioning.
• Automatic blade tension is controlled by hydraulic cylinder.
• Variable feed speed by hydraulic motor drive.
• The big pressure roller is air cylinder loaded to hold wood down firmly
|
Product Details |
|
|
With digital readout |
|
|
Max. workpiece size |
300mm(W) x 250mm(H) |
|
Distance from blade to conveyor Table |
4-125mm |
|
Conveyor belt size |
285mm x 5480mm |
|
Saw wheel dimension |
Φ28" x 1"(Thickness) |
|
Max. infeed speed |
16M/min OPTIONAL: 25M/min. |
|
Saw blade size |
168" x 1" |
|
Saw wheel motor |
20HP |
|
Controlling blade tension |
Hydraulic system |
|
Hydraulic system |
Motor 3HP / Infeed conveyor table by hyd. motor |
|
Gear box motor |
1/4HP |
|
Dust hood diameter |
ø4" x4 |
|
Min. working length request |
400mm (shorter length upon request) |
|
Tolorance |
±0.1ｍｍ |
|
Country of origin |
Taiwan |
|
Warranty |
1 year |
HP-11P Single Head Horizontal Band Resaw operation:Installing the Bandsaw Blade manufacturer: Blue Steel Machinery Company 86-10, Shen Ching Road, Ching Shui, Taiwan 436 Tel：+886-4-2620-1608 Fax：+886-4-2620-0289
