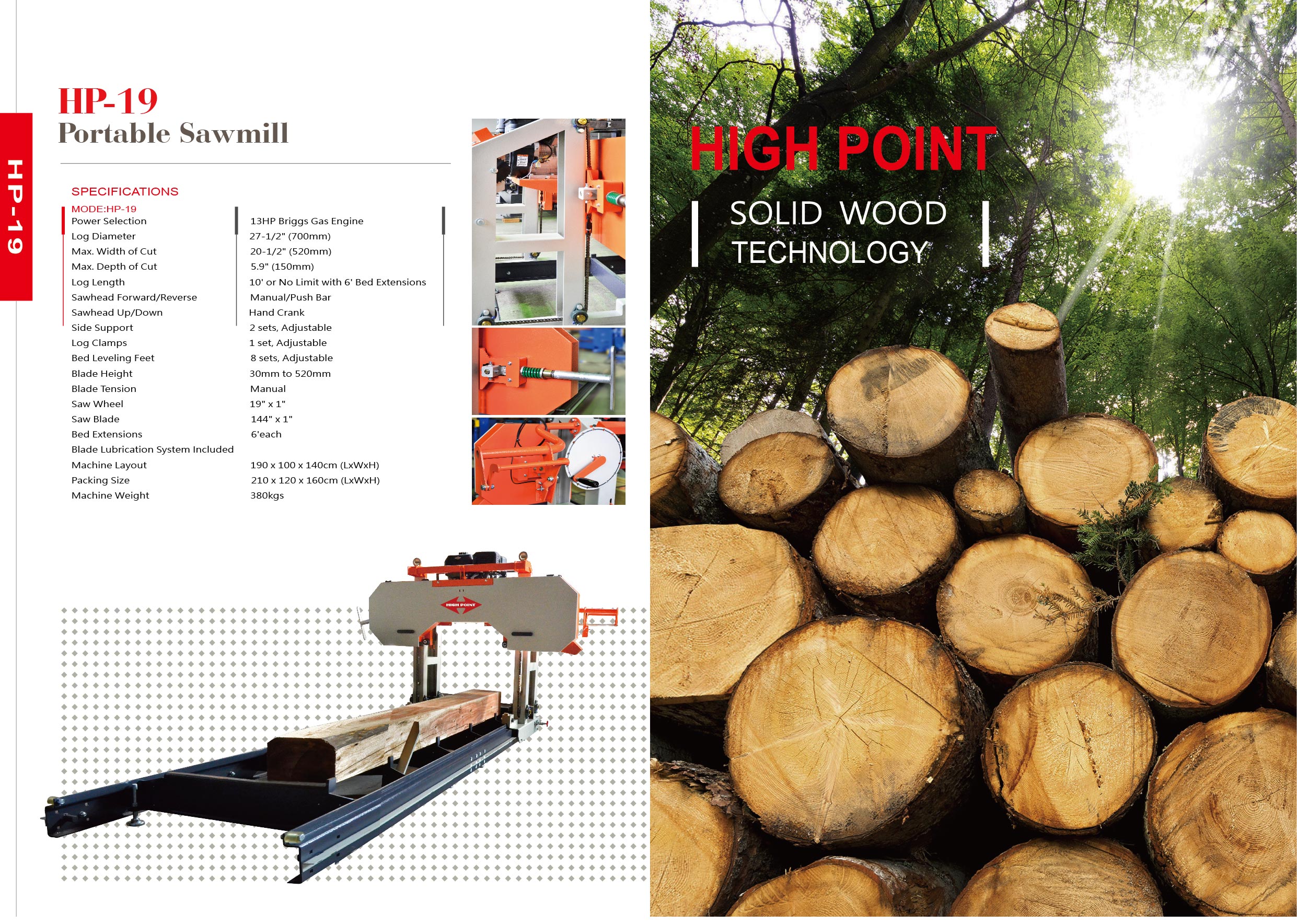

HP- 19

1.   Sturdy and robust design

2.   Preassembled, fast set up

3.   Strong gas engine with centrifugal clutch

Power selection

13HP Briggs & Stratton gas engine

Max. log diameter

700mm (27-1/2”)

Max. width of cut

520mm (20-1/2”)

Max. depth of cut

150mm (5.9”)

Max. log length

10’ or No Limit with 6’ bed extensions

Saw wheel diameter

480mm (19”)

Saw wheel width

22mm (1”)

Saw blade size

3657 x 27mm (144” x 1’)

Blade speed

1470m/min (4825FPM)

Blade tensioning

Manual

Sawhead forward/reverse

Manual/Push bar

Sawhead up/down

Hand crank (1 rotation equals 1”)

Side support

2 sets, adjustable

Log clamps

1 set, adjustable

Blade height

30mm to 520mm

Blade lubrication system included

Machine weight

380kgs

Machine dimensions

1900 x 1000 x 1400mm (LxWxH)
