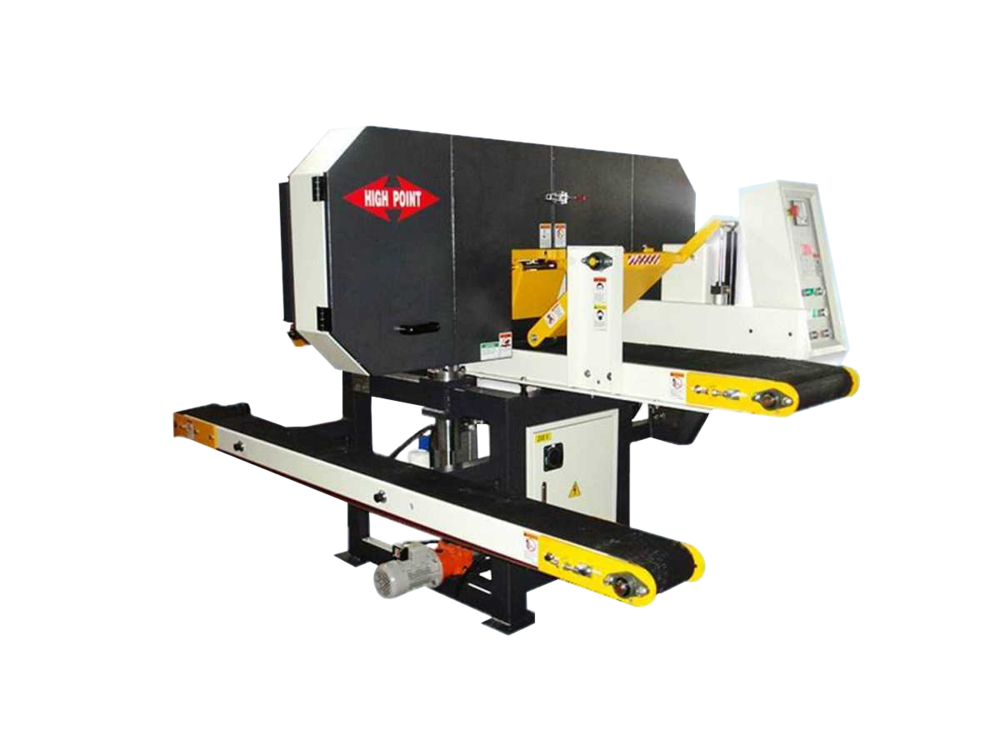

Product Details

With digital readout

Max. workpiece size

300mm(W) x 250mm(H)

Distance from Blade to Conveyor Table

4-250mm

Conveyor belt size

385mm x 5470mm

Saw wheel dimension

Φ28" x 2"(Thickness)

Saw blade size

180" x 1-1/2"

Saw wheel motor

30HP

Saw blade tension

Hydraulic system

Hydraulic Pressure

55kgs/cm2

Gear box motor

1/4HP

Dust hood diameter

ø4" x2

Elevation Motor

1/4HP 6P

Max. infeed speed

16M/min  OPTIONAL: 25M/min

Hydraulic System

Motor 3HP / In-feed Speed WP250 (or WP400 for the slowest) / Out-feed Speed WP160

Constitutions

1 With Return Conveyor: Belt size 185mm x 5470mm

2. With Mist Coolant System for Saw Blade

3. Controlling Blade Tension: Pneumatic Boosting Cylinder

4. With 30HP Inverter

5. Saw kerf: 1.35mm
