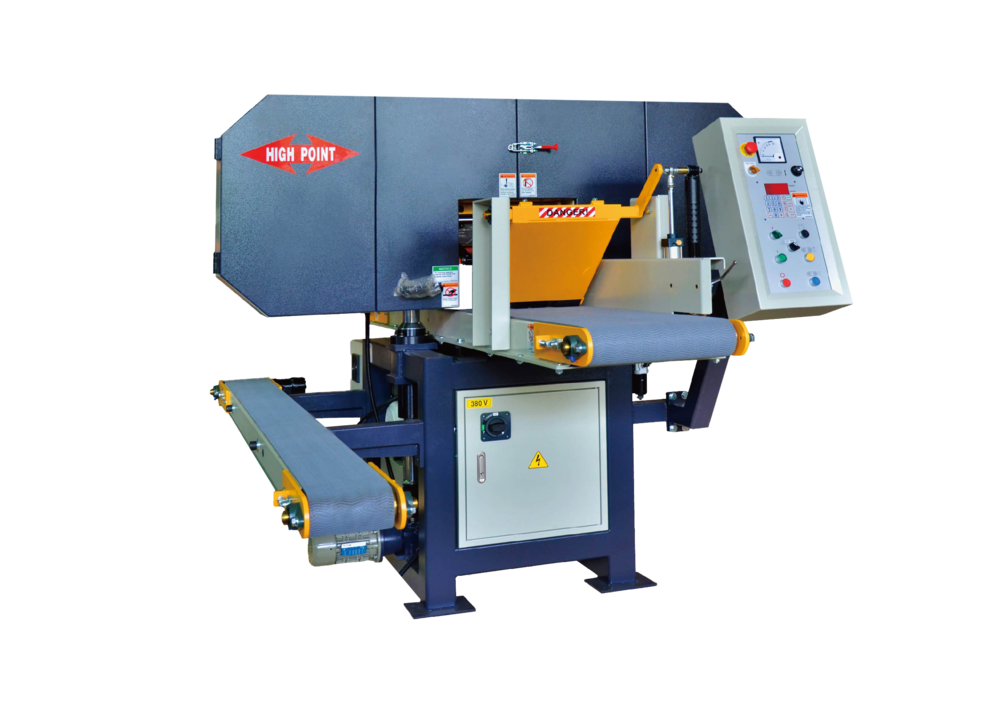

Product Details

With digital readout

Max. workpiece size

610mm(W) x 250mm(H)

Distance from Blade to Conveyor Table

3-250mm

Conveyor belt size

585mm x 5470mm

Saw wheel dimension

Φ28" x 2"(Thickness)

Saw blade size

195.5"(L) x 2"(W)

Saw wheel motor

30HP

Saw blade tension

Hydraulic system

Hydraulic Pressure

55kgs/cm2

Gear box motor

1/4HP

Dust hood diameter

ø4" x2

Elevation Motor

1/4HP 6P

Max. infeed speed

20M/min

Hydraulic System

Motor 3HP / In-feed Speed WP250 / Out-feed Speed WP160

Structure

1 With Return Conveyor: Belt size 185mm x 5470mm

2. With Mist Coolant System for Saw Blade

3. With 30HP Inverter

4. With Air/Hydraulic Compensation System for blade tensioning

5. Pressure Roller System: Heavy Duty

6. Hold Down Roller by Air Cylinder

7. Pneumatic Pressure Roller System for Accurate Cutting
