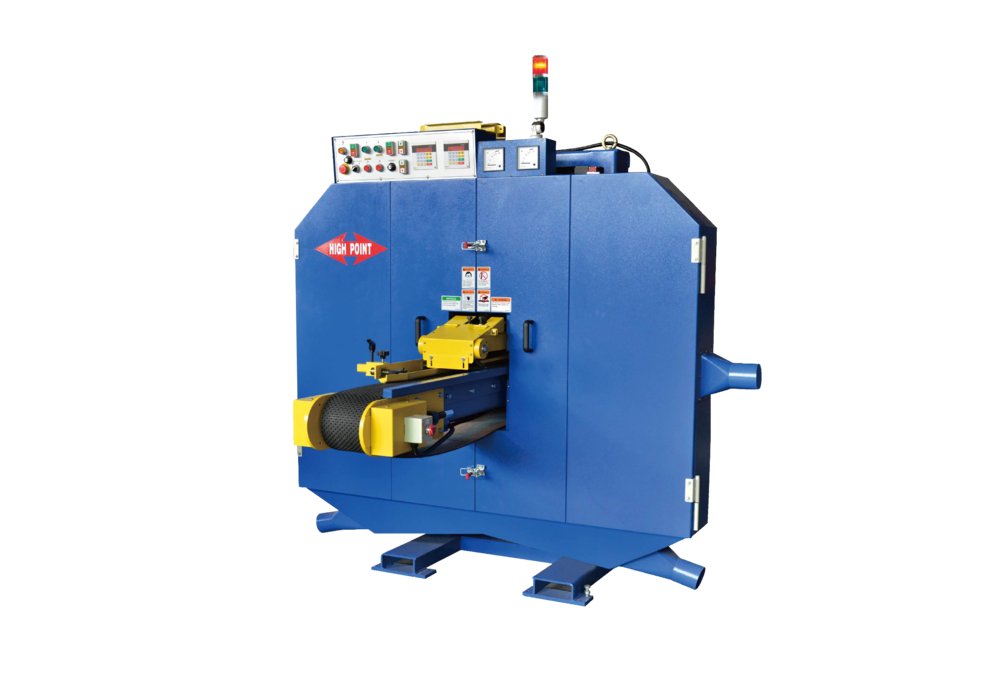

Product Details

With digital readout

De-dusting System (U.S.A. and TAIWAN Patented)

Max. workpiece size

200mm(W) x 50mm(H) (7.8"x2")

Distance from Upper Blade to Conveyor Table

10-50mm

Distance from Lower Blade to Conveyor Table

4-40mm

Minimum thickness between blades

8mm

Conveyor Belt Size

185mm(W) x 5578mm(L)

Saw blade size

168"(L) x 1"(W) (4265mm x 27mm)

Saw Wheel Dimension

Φ28" x 1"(Thickness)

Dust Hood Diameter

ø4" x 4

In-feed Speed

5-40M/min.

Saw Wheel Motor

20HP x 2

Blade Tension System

Hydraulic

Conveyor Infeed system

2HP motor w/ inverter

Gear Box Motor

1/4HP x 2

Saw Blade Guide (8pcs/1set)

Min. Length of Working Piece

300mm

Chain infeed system w/ 90w motor, spring push down mechanism

With 2 air nozzles for cleaning wood dust
